ALMiG Screw Compressors

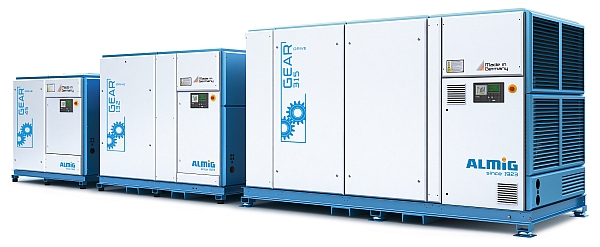

ALMiG Gear Series

gear-series-screw-compressors-almig

The ALMiG GEAR Series are the heavy lifters of the ALMiG line of screw compressors. The gear driven plants of this series allows for these compressors to meet the challenge of extensive air requirements while maintaining ALMiG's reputation of quality and durability. Its unique design allows for operation under any ambient condition. The ALMiG GEAR Series was designed for the sole purpose of guaranteed high performance under 100% load on a 24/7 basis. As always, efficiency is taken into account with the GEAR Series maintaining above 98% efficiency due to flexible gear drives with easily replaceable working elements that protect the drive. Overall, the GEAR Series lowers your investment cost and combines that with lower life cycle costs due to extended maintenance periods. If you're looking for power, reliability, and efficiency than the ALMiG GEAR Series is perfect for your application.

Features

  • Compact build
  • Single-stage
  • Oil injected
  • Low-noise enclosure
  • TEFC high performance motor
  • Y-Delta Starter
  • ALMiG AIR CONTROL III advanced control system

General technical information

  • Power rating: 50 - 700 HP
  • Pressure: Up to 190 PSI(g)
  • Flow rate: 150 - 2500 CFM
  • Cooling System: Air cooled, Water Cooled, Sea Water Cooled

Details

  • Unit manufactured in accordance with UL, ASME, OHSA and CE standards
  • Standard Load / Unload operation. Optional valve modulation equipment (throttling) for capacity control.
  • Vibration-isolated (compressor assembly isolated from the base frame), fluid-tight base frame. No foundation for installation needed!
  • Sound insulation with dirt-repellant lining
  • Integrated electrical control cabinet
  • Main switch installed external or internal
  • Power transmission from drive motor to air end trough a extremely efficient gear drive to optimize the flow rate under any condition
  • Gear drive system with increased lifetime and low energy costs
  • Safe, fully unloaded start-up using ALMIG intake regulator with intake filter
  • Oil-injection-cooled compressor stage featuring high operational reliability
  • Oil separator reservoir for optimum pre-separation
  • Oil separator cartridge for high compressed air quality with low residual oil content
  • Large-area cellular radiator for oil and compressed air cooling and low compressed air outlet temperature
  • Emergency stop function
  • Automatic restart after power loss
